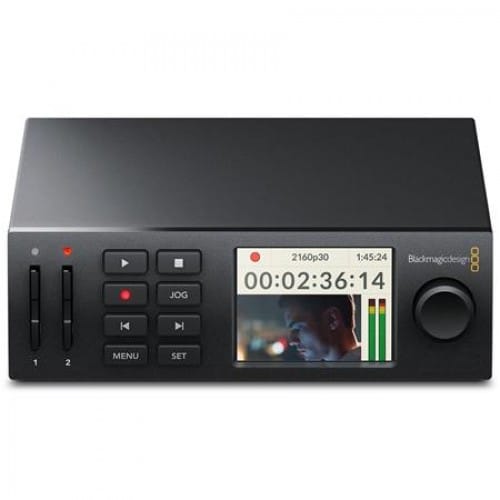

Blackmagic Design HyperDeck Studio Mini Ultra HD
Blackmagic Design HyperDeck Studio Mini Specifications

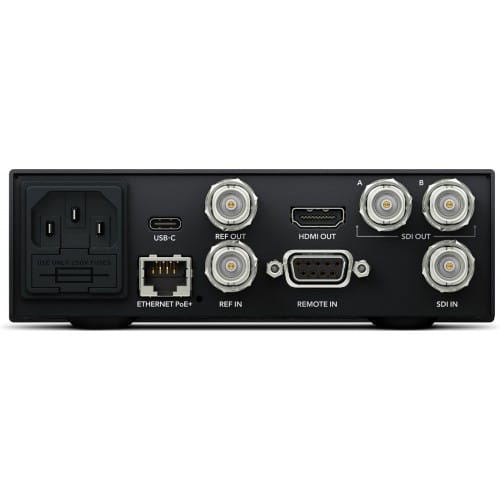

- Connections
- 1x SDI Video Input
2x SDI Video Output
SDI Rates: 270Mb, 1.5G-SDI, 3G-SDI, 6G-SDI
HDMI Video Output: 1 x HDMI type A connector
Power over Ethernet: 1x Ethernet with Power over Ethernet
Analog Video Input: No
Analog Video Output: No
Analog Audio Input: No, embedded audio only
Analog Audio Output: No, embedded audio only
Timecode connections: No
SDI Audio Input: 16 channels embedded in SD and HD in QuickTime files - Connections (Cont.)
- SDI Audio Output: 16 channels embedded in SD and HD in QuickTime files.
HDMI Audio Input: No
HDMI Audio Output: 8 channels embedded in SD, HD and UHD in QuickTime files.
Reference Input: Tri-Sync or Black Burst
Reference Output: Tri-Sync or Black Burst
Computer Interface: 1x USB 2.0 type C for software updates and HyperDeck Utility software control - SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60 - Ultra HD Video Standards
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- SDI Compliance
- SMPTE 259M, 292M, 296M and 425M
- SDI Metadata Support
- HD RP 188 and closed captioning
- Audio Sampling
- Television standard sample rate of 48kHz and 24-bit
- Video Sampling
- 4:4:4:4
- Color Precision
- 10-bit
- Color Space
- REC 601, REC 709
- Copy Protection
- HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution
- Media
- 2x SD for SD, HD and UHD recording
- Media Type
- UHS II and able to support ProRes 4444 playback and 422 recording
- Media Format
- Can format discs to ExFAT (Windows/Mac) or OS X Extended (Mac) file systems
- Supported Codecs
- Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime
- FTP Clients
- Cyberduck, Transmit, FileZilla
- Control

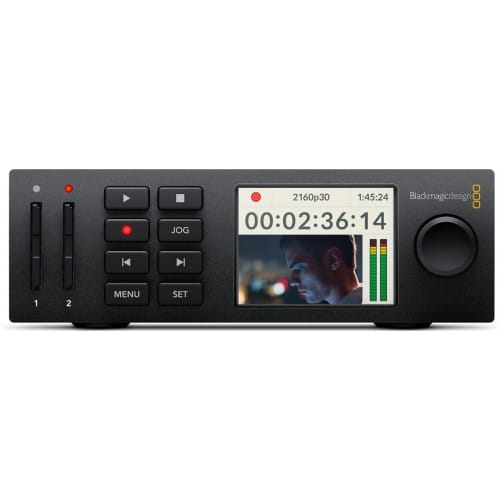

- 8 Buttons for menu control, 2.2″ color display, and a rotary wheel
- Software
- Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only)
Internal Software Upgrade: Firmware built into software driver. Loaded at system start, or via updater software - Displays
- Built-in LCD for video, audio and timecode monitoring and menu settings
2x LED indicator lights above the SD slots - Installation
- 1/3 rack unit size. Less than 7 inches deep
- Operating Systems
- Mac OS X 10.11 El Capitan, macOS Sierra or later
Windows 8.1 64-bit or Windows 10 64-bit - Power Supply
- 1x Internal 100 – 240V AC
- Operating Temperature
- 5 to 50 deg. C (41 to 122 deg. F)
- Storage Temperature
- -20 to 45 deg. C (-4 to 113 deg. F)
- Relative Humidity
- 0% to 90% non-condensing
- Dimensions (W x L X H)
- 5.51 x 6.69 x 1.75″ (14.00 x 16.99 x 4.45cm)
- Weight
- 1.28lbs (0.58kg)
